Model 351

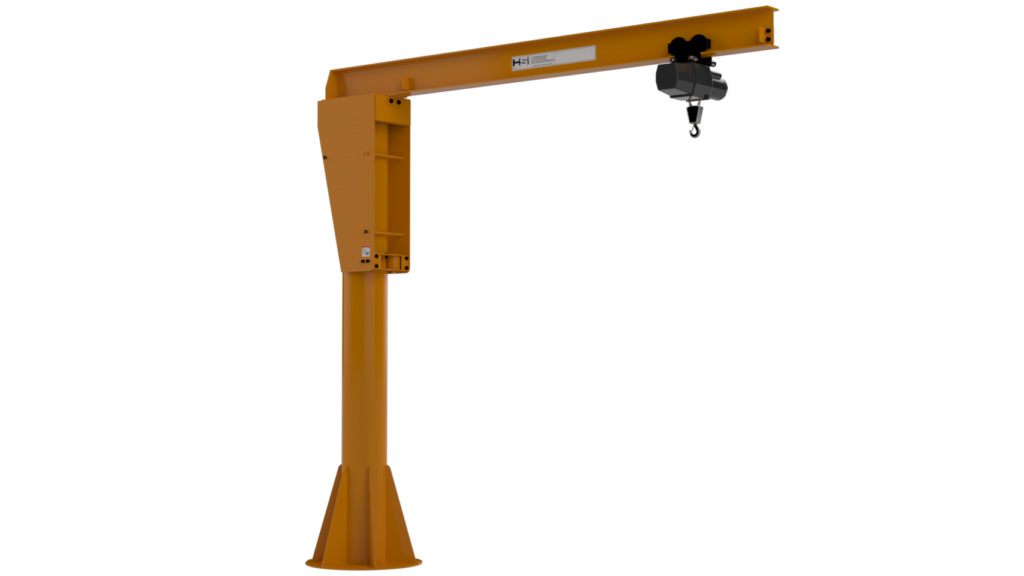

Heavy Duty Freestanding Jib Cranes

The Handling Systems International HEAVY DUTY pillar base mounted jib crane is built to last, and is ideal for processes that involve heavy lifting and constant use throughout the day. Fully customizable, this self-supporting 360 degree rotating jib crane mounts to the floor using HSI’s anchor bolts and recommended
foundation.

CAPACITIES & SPANS

• Capacities up to 15 ton with
• Standard Span/Heights up to 30+ feet.
• Custom heights and spans available

ROTATION

360 degree rotation is standard

FEATURES & BENEFITS

• Heavy Duty assembly with reinforcing side plates
• Full plate style gussets for maximum load distribution
• Heavy duty top thrust bearing with pressure fitted housing for ease of rotation
• Heavy Duty roller cage that is built to last; steel rollers with low friction bearings, adjustable tension bolts, keeper bar, and zerk fittings
• Built with safety in mind; anti-tip angles to prevent head removal from accidental impact and spacer rods to prevent head assembly plate flexing

MOTORIZED ROTATION AVAILABLE

Electric or Air powered
Reduce injuries and create efficiency
HAND GEARED ROTATION AVAILABLE

OPTIONS & ACCESSORIES

• Tight Wire Kit (Festooning/”Tagline”)
• C Track Flat Cable Festooning
• Rotation Stops
• Outdoor Application
• Hoist & Trolley Packages
• Template and Anchor Bolts
