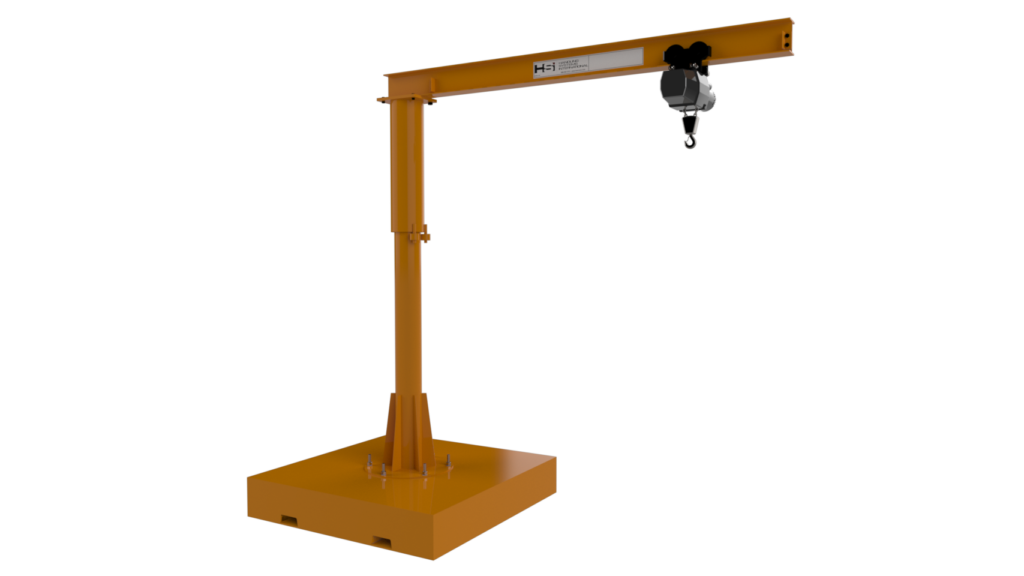

Model 350PJ
Portable Forkpocket Jib Crane

The Handling Systems International portable forkpocket jib crane is ideal when pouring a foundation is out of the question or when several work areas require the help of a jib crane. Easily move this jib throughout your factory with a standard forklift.

CAPACITIES & SPANS

• Capacities up to 1/2 ton with
• Standard Span/Heights up to 16 feet.
• Custom heights and spans available

ROTATION

360 degree rotation is standard

FEATURES & BENEFITS

• Order base hollow or pre-filled with concrete
• Leveling legs for ease of adjustment
• Boom lock parking device provided for safety and ease of transport
• Economical pipe over pipe design
• Full plate style gussets for maximum load distribution
• Bottom thrust roller consists of two self-aligning, heavy duty, sealed cam follower type bearings. (maintenance free and easy to replace)
• Upper garlock sleeve and garlock washer for top pin rotation (teflon coated for minimal friction rotation)

OPTIONS & ACCESSORIES

• Tight Wire Kit (Festooning/”Tagline”)
• C Track Flat Cable Festooning
• Rotation Stops
• Outdoor Application
• Hoist & Trolley Packages
